atuljani@gayatrigeosynthetics.com -
+91-265-3592570, +91-265-2225569
2500 SQM (MOQ)
| Business Type | Manufacturer, Exporter, Supplier |
| Product Type | Geomembrane |
| Brand Name | Gayatri Geo |
| Material | Polypropylene, Polyethylene, PVC and HDPE. |
| Click to view more | |
Product Details
Condition
Good
Place Of Origin
Vadodara,Gujrat
Payment Terms
L/C, T/T
Delivery Time
3 to 4 Week (Min.)

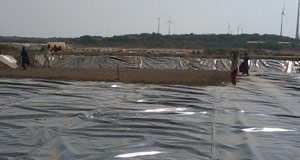

Geomembranes Essentially impermeable sheets produced from polymeric materials. Geomembranes are manufactured several ways, excluding woven methods as they would leave unacceptably large voids in the material. Suitable materials include PVC, Polypropylene, Polyethylene and HDP.
APPLICATION
- Hazardous Solid Waste Land Filled
- Municipal Solid Waste Land Filled
- Road Work
- Air Field
- Water Reservoir
- Evaporation Pond
- Land Filled Capping
Specifications
| Property | Test Method | Nominal Values | ||||
| Thickness, mm | ASTM D 751/1593/5199 | 1 | 1.5 | 2 | 2.5 | 3 |
| Density, g/cc | ASTM D 792/1505 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 |
| Strength at Break, N/mm | ASTM D 6693, Type IV | 34 | 52 | 69 | 86 | 103 |
| Strength at Yield, N/mm | ASTM D 6693, Type IV | 16 | 25 | 33 | 41 | 50 |
| Elongation at Break, % | ASTM D 6693, Type IV | 750 | 800 | 800 | 800 | 800 |
| Elongation at Yield, % | ASTM D 6693, Type IV | 15 | 15 | 15 | 15 | 15 |
| Tear Resistance, N | ASTM D 1004 | 146 | 222 | 293 | 369 | 445 |
| Puncture Resistance, N | FTMS 101, Method 2065 | 267 | 400 | 533 | 667 | 800 |
| Carbon Black Content, % | ASTM D 1603 | 43134 | 43134 | 43134 | 43134 | 43134 |
| Carbon Black Dispersion | ASTM D 3015 | A1/A2 | A1/A2 | A1/A2 | A1/A2 | A1/A2 |
| Dimensional Stability, % (each direction) | ASTM D 1204, 100°C 1hr | ±1 | ±1 | ±1 | ±1 | ±1 |
| Environmental Stress Crack Resistance, hr | ASTM D 1693, Cond. B | >2000 | >2000 | >2000 | >2000 | >2000 |
| Low Temperature Brittleness, °C | ASTM D 746, Cond. B | <-84 | <-84 | <-84 | <-84 | <-84 |
| Oxidative Induction Time, minutes | ASTM D 3895, 200°C Pure O2, 1 atm |
100 | 100 | 100 | 100 | 100 |
| Ozone Resistance | ASTM D 1149, 7 days 100ppm | No Cracks | No Cracks | No Cracks | No Cracks | No Cracks |
| Water Absorption, % wt. change | ASTM D 570 | <0.01 | <0.01 | <0.01 | <0.01 | <0.01 |
| Moisture Vapour Transmission, g/m² | ASTM E 96 | <0.001 | <0.001 | <0.001 | <0.001 | <0.001 |
| Melt Flow Index, g/10 minutes | ASTM D 1238, Cond. 190/2.16 | <=1.0 | <=1.0 | <=1.0 | <=1.0 | <=1.0 |
