PVC Tunnel Waterproofing Membrane

PVC Tunnel Waterproofing Membrane

Price : 300.00 / Square Meter

Business Type	Manufacturer, Exporter
Material	PVC
Thickness	2-16mm
Application	Tanking And Used In Underground And Construction Tunnel As A Fluid Barrier.
Click to view more

Preferred Buyer From

Location

Worldwide

Product Details

Feature

Waterproof

Advantages

Total impermeability, Very high resistance to impact and puncture.

MOC

PVC resin,Plasticizer,Stabilizer and Color master batch.

Application Method

PVC membrane are welded with specialize machine, tools and tackles.

Top Layer

White/ Yellow

Base Layer

Black

Storage

Keep away from direct sun light.

Ecological Data

PVC membrane can be used in natural atmosphere.

acquiring our premium and high-grade range of product is hassle free as our organization is located in vadodara(india), which is easily accessible by road, rail, and air. Supported by an advanced transit system, we have become capable of delivering the orders within promised time.

scope :

the purpose of the pvc membrane waterproofinf to underground/submerged structure is to prevent leakage of water into structure.the waterproofing system would consist 2/3 layer-
1st or inner layer non woven needle punched geotextile,
2nd or middle layer pvc waterproofing membrane.
3rd or outer layer non woven needle punched geotextile as protective layer.

selection of pvc membrane

suitable against hydrostatic resistance. D of is:2076
high puncture resistance.- b of is:2076
high tear resistance- c of is:2076
low temperature crack resistance. C of is:2076
water absobtion- -1% max.
resistance to soil burial. Easy to install.

installation of pvc membrane

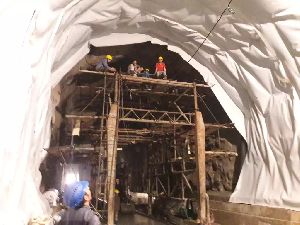

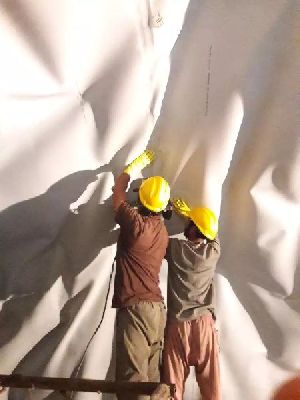

the pvc membrane would be installed to cover structure and 1st layer of geotextile by thermal welding, adjacent pvc membrane shall be joined through double weld to ensure 100% waterproofing.

Yes! I am interested

Mechanical Properties

Properties	Test Standard	Value
Specific Gravity	ASTM D 792	1.42
Thickness mm±10%	ASTM D 5199	2 MM
Tensile Strength N/mm²	ASTM D 1599	18
Elongation in %	ASTM D 1599	300%
Tear Resistance N/mm	ASTM D 1004⁴	120
Punture Resistance KN	ASTM D 5602	2.5
Low Crack Resistance Shall not break, crack at -28˚ C	ASTM D 1790	Pass
